Controller

Air Shower Controller

The Neural Air Shower Controller coordinates entry-door locking, high-velocity blower fans, dynamic HEPA filtration monitoring, and customizable cycle timers. It ensures that personnel entering the cleanroom are stripped of surface particulates, with step-by-step audio prompts.

Operating Voltage80–280V AC, 50 Hz (Main Controller) / 24V DC Lock supply
Power Consumption80W max controller load
Blower Relay Output230V AC / 2A contactor trigger for Blower Motor (up to 1 HP / 2 HP)
Request Product Catalog & Inquiry
Download Manual (PDF)

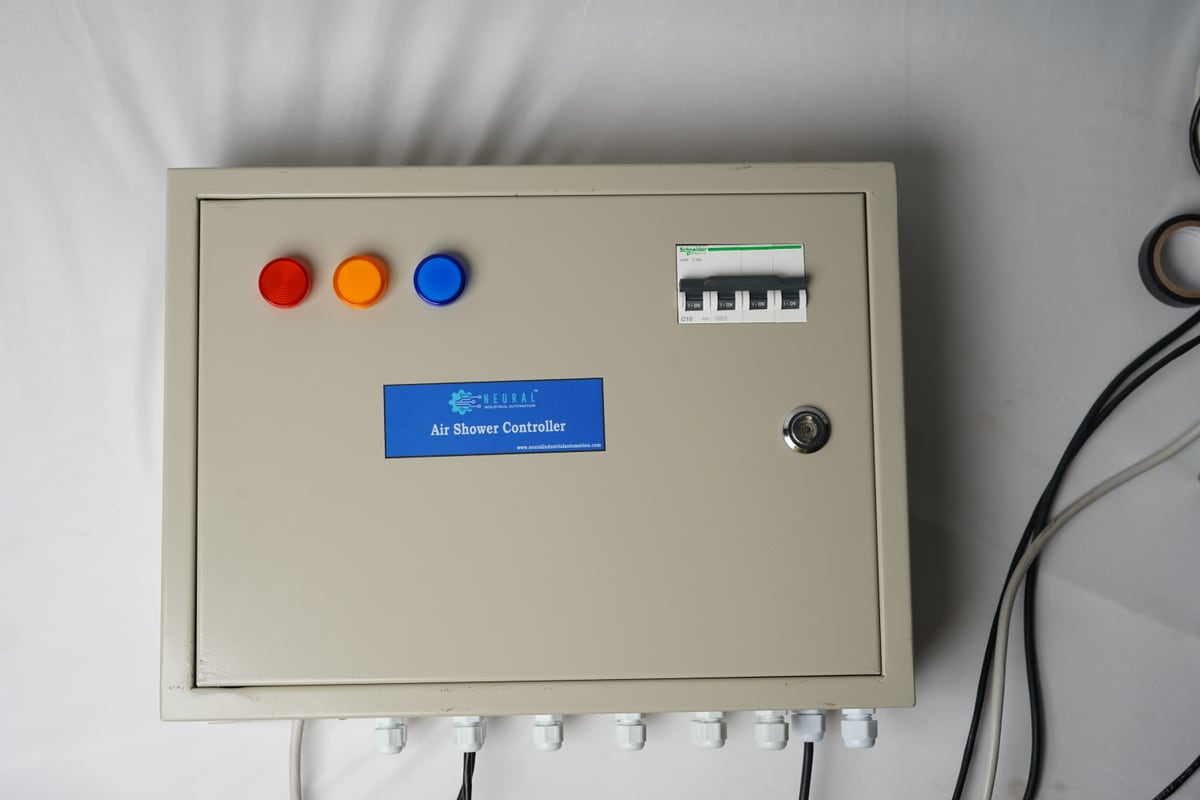

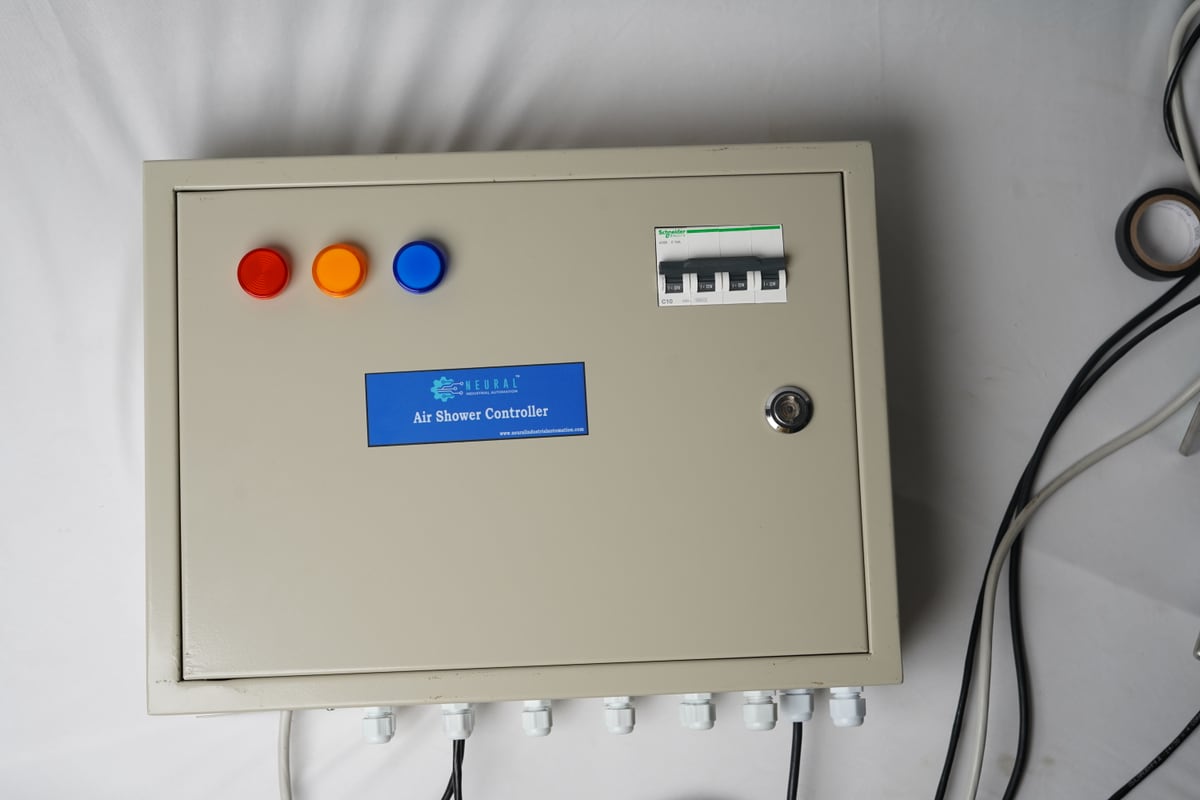

Master Air Shower Logic Controller Panel
1 / 7
Deployment

Cleanroom Environments

Designed to integrate into high-specification environments, meeting the rigid requirements of cleanliness, pressure isolation, and continuous operation.

Gown Rooms in Semiconductor Fabs

Fully validated placement.

Biosafety Level 3 (BSL-3) Entry Chambers

Fully validated placement.

Precision Electronics Manufacturing Entryways

Fully validated placement.

Capability

Engineering Excellence

Precision hardware matched with advanced firmware loops. These features protect zones from pressure failure or overlap entry risks.

  • 1Automatic entry interlocking (keeps cleanroom door locked during shower cycle).
  • 2High-velocity fan control (20-25 m/s) with soft-start capability.
  • 3Filter pressure drop monitoring using integrated differential pressure transducers.
  • 4Interactive voice instructions and bright graphic displays.
Logic Loops

Working Principle

Understand the sub-millisecond sequencing of commands that run inside the ARM core processor. Click each step below to simulate execution.

REQUESTGATESECURE
Datasheet

Technical Specifications

Electrical & Power

Operating Voltage80–280V AC, 50 Hz (Main Controller) / 24V DC Lock supply
Power Consumption80W max controller load
Blower Relay Output230V AC / 2A contactor trigger for Blower Motor (up to 1 HP / 2 HP)

Control Parameters

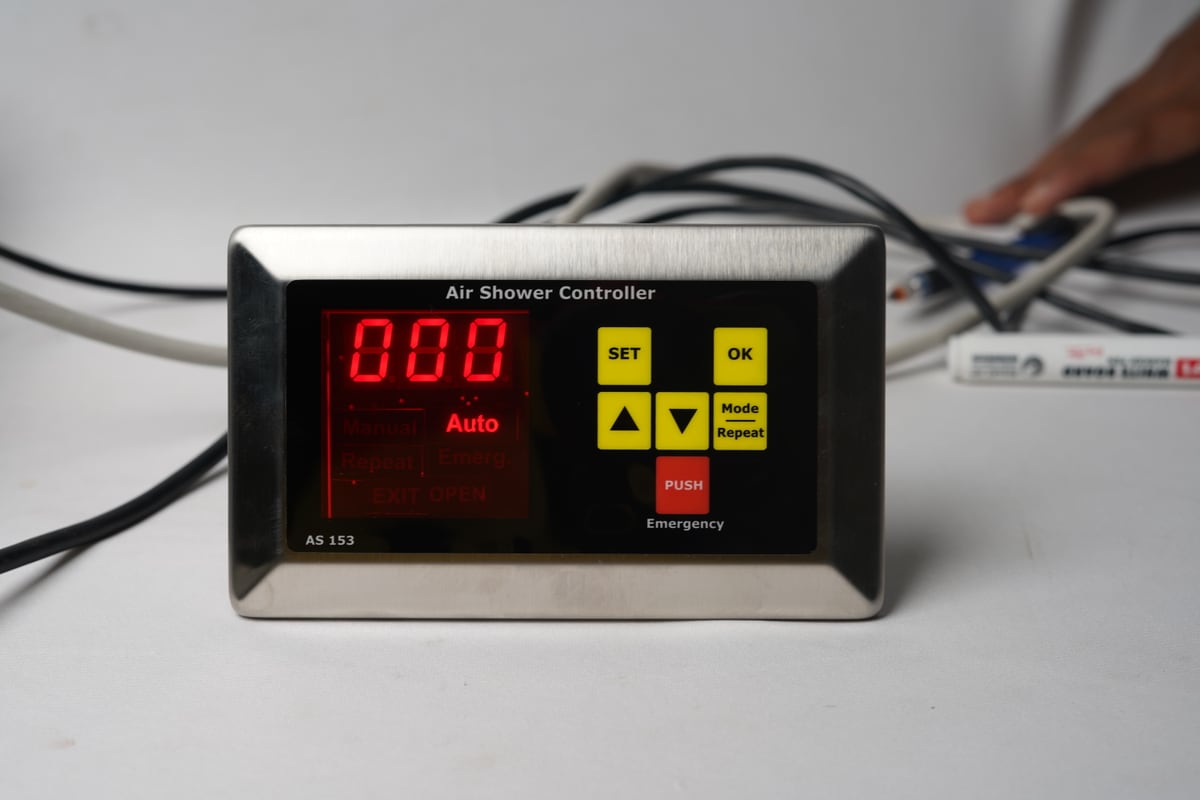

Shower DurationUser programmable 0 to 255 Seconds (Default: 12s)
Door CapacityUp to 3 Doors per air shower chamber cascade

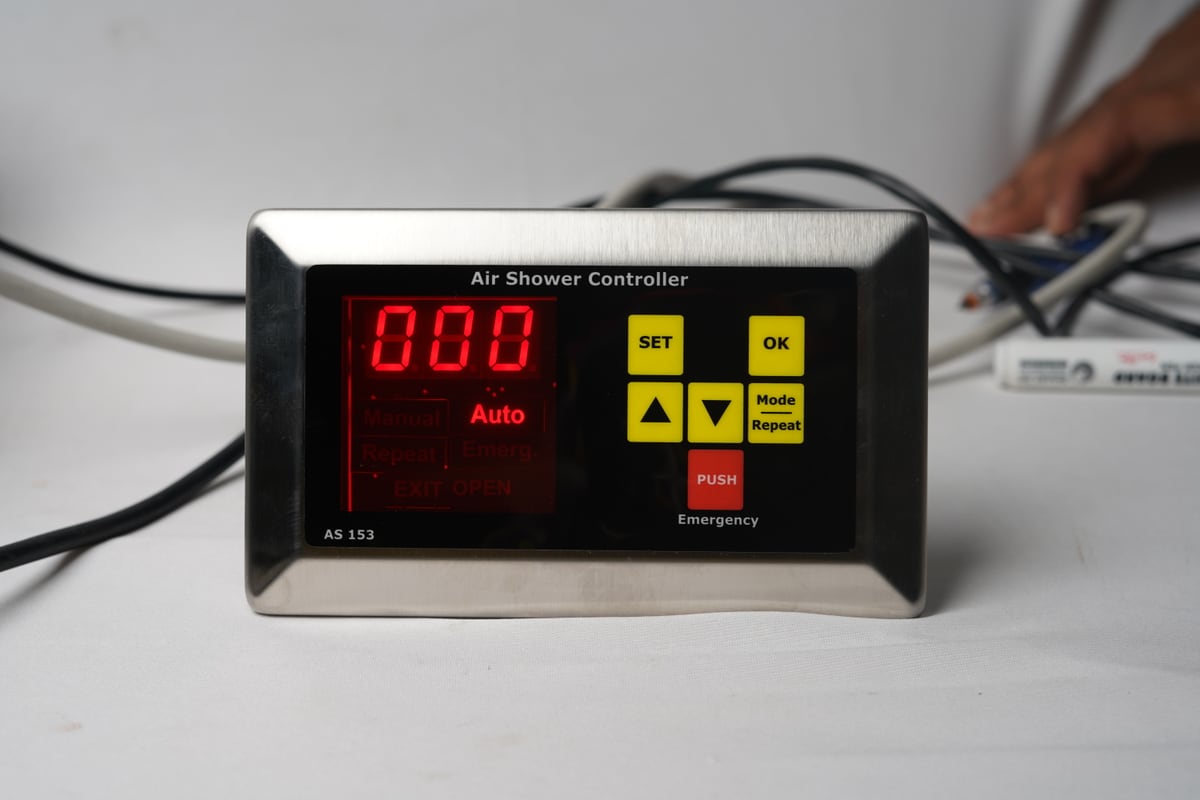

Status & AlertsDigital Parameter Monitor (DPM) with audio-visual buzzer for Door Ajar & MCB Trip

Physical & Environmental

Enclosure MaterialMS Powder Coated Main Box & Stainless Steel Panel
Operating Temperature0°C to 50°C

Product Manuals & Specifications

Air Shower Manual
Manual · 420 KB
